500 RPM High-Speed Rotary Degassing with 99.996% Pure Argon
Crane-Lifted Suspending Rotary Degassing Unit for Aluminum Melt Refining
Maximize aluminum purity and casting quality with HYDEB's Suspending Rotary Degassing Unit. Engineered for foundries and smelters, this crane-operated system utilizes a high-speed graphite rotor (up to 500 RPM) and ultra-pure gas (99.996% Argon/N₂) to efficiently remove hydrogen and inclusions from molten aluminum. Featuring full PLC automation and a compact, suspendable design, it integrates seamlessly into your existing workflow for repeatable, superior results.
Company Profile
Jinan HYDEB Thermal Tech Co., Ltd., established in 2003, is a dedicated specialist in aluminum casting technology. With a focused team and annual sales exceeding 50 million RMB, we provide a complete line of independently R&D-designed equipment—from melting and transfer to refining, hydrogen measurement, and aging treatment. Our commitment is to deliver innovative, reliable solutions that enhance your productivity and product quality.
Key Applications
- Aluminum foundries
- Molten aluminum holding & transfer vessels (crucible furnaces, ladles)
System Advantages & Core Features
- High-Efficiency Refining: 500 RPM variable-speed graphite rotor combined with 99.996% pure gas ensures deep, rapid degassing and inclusion removal.
- Full PLC Automation: Programmable Logic Controller ensures precise, repeatable cycles with password-protected parameters.
- Precision Flux Injection: Accurate sub-surface injection of refining flux for optimal reagent efficiency.
- Intelligent Operation: Features auto-timer, end-of-cycle alerts, and self-diagnostics for reliable, unattended operation.
- Robust Design: Integrated cooling blower prevents overheating; optional 360° rotation enhances operational flexibility.
- Crane-Lifted Suspension: Easy positioning and movement between treatment stations, maximizing layout flexibility.
Technical Specifications
| Parameter |
Specification |
Notes |
| Refining Gas |
Purity: ≥99.996%, Moisture: ≤3 ppm, O₂: ≤5 ppm
Pressure: 0.1-0.6 MPa (Adjustable), Flow: 15-30 L/min (Adjustable) |
Argon or Nitrogen |
| Refining Flux |
Granularity: ≤5 mm, Injection Rate: 0-350 g/min (Adjustable) |
|
| Electrical Supply |
3-Phase, 380V±10%, 50Hz, Total Power: < 3 kW |
Energy Efficient |
| Graphite Rotor Speed |
0 - 500 RPM |
VVVF Adjustable |
| Processing Time |
0 - 99 minutes (Programmable) |
|
| Control System |
Programmable Logic Controller (PLC) |
For automated, repeatable cycles |
| Approx. Weight |
~600 kg |
Design-dependent |
Available Models

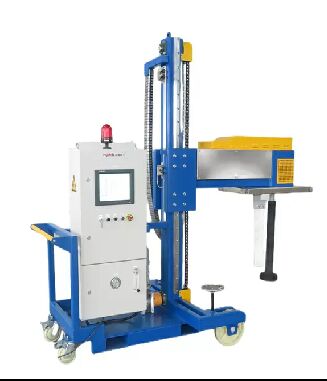

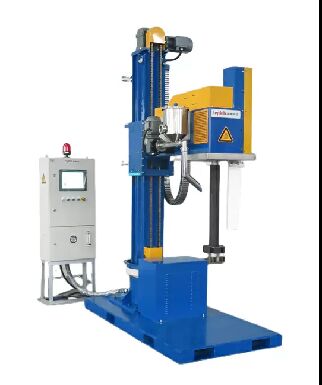

- Stationary Type (Model: XCP230-1)
- Mobile Type (Model: XC210-1)
- Suspending Type (Models: XCP100-1, XCP100A) Featured
Why Choose HYDEB?
- Industry Focus: Two decades of dedicated expertise in aluminum casting equipment.
- Integrated Solutions: A complete product line from a single, reliable source.
- Independent R&D: Customizable designs and continuous innovation.
- Proven Track Record: Trusted by leading global manufacturers.
Frequently Asked Questions
How do I select the right degassing unit for my application?
Contact our engineering team. Share your crucible/ladle size, desired throughput, and specific quality goals. We'll analyze your needs and recommend the optimal model (e.g., 400 RPM, 600 RPM, or custom) and configuration.
What support is provided after purchase?
We supply comprehensive English manuals, installation videos/guidelines, and offer direct technical support via Email, Skype, WhatsApp, or WeChat to ensure smooth commissioning and operation.
What are your warranty and service terms?
The unit comes with a standard warranty covering manufacturing defects. We provide free replacement parts during this period (consumables excluded) and commit to lifelong after-sales technical support.
